High-quality Image. Optimal Axial and Lateral resolution. Ideal for personal use, for intensive care units.

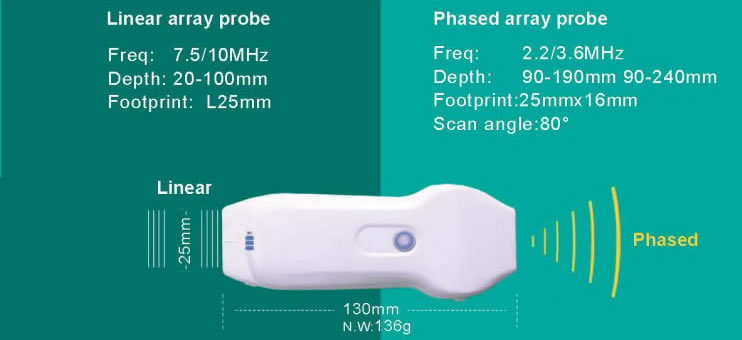

PHASED and LINEAR 128 ELEMENT COLOR DOPPLER |
Scanning Mode |
Phased (Cardiac) |
Linear |
Image Enhancement |
0.1.2.3.4 |
Frequency |
2 2 / 3.6MHz |
|
Focus |
0.1.2.3 |
Depth |
90 / 130 / 60 / 190mm |
|
Elements |
128 |
Cineplay |
100 / 200 / 500 / 1000 |
BTGC |
Yes |
Application |
Cardiac, Abdomen, Thiroid, Vascular. |
Dynamic Range |
40 - 110 Db |
Measure |
B: Length, Area / Circumference, Angle, Trace, Distance.
M: Heart Rate, Time, Distance, LVDd. LVIDs. SV. EF. B / PW: Velocity, Heart Rate, S / D, Depth |
Charge |
USB Cable or wireless charge. 2h |
Display mode |
B, B / M, Color doppler, PW doppler, Power doppler. |
Gain |
30 - 105 Db |
Power consumption |
4W (probe run) 15W (probe stop) |
Image gray scale |
256 level |
Bettery capacity |
Lithium Battery, 2800 mAh. Working time > 3h, Standby time > 5h, supporting working while charging. |
Image frame rate |
24 f / s |
Language |
Inglish, Italiian, Spanish, Potuaguese German, French, Chinese. |
Size |
130 - 61 - 21 mm |
Host |
IQS, ipad / iphon, Android, Windows. |
Weight |
127 g |
Image format |
GPG. AVL. MP4. DICOM |
Package |

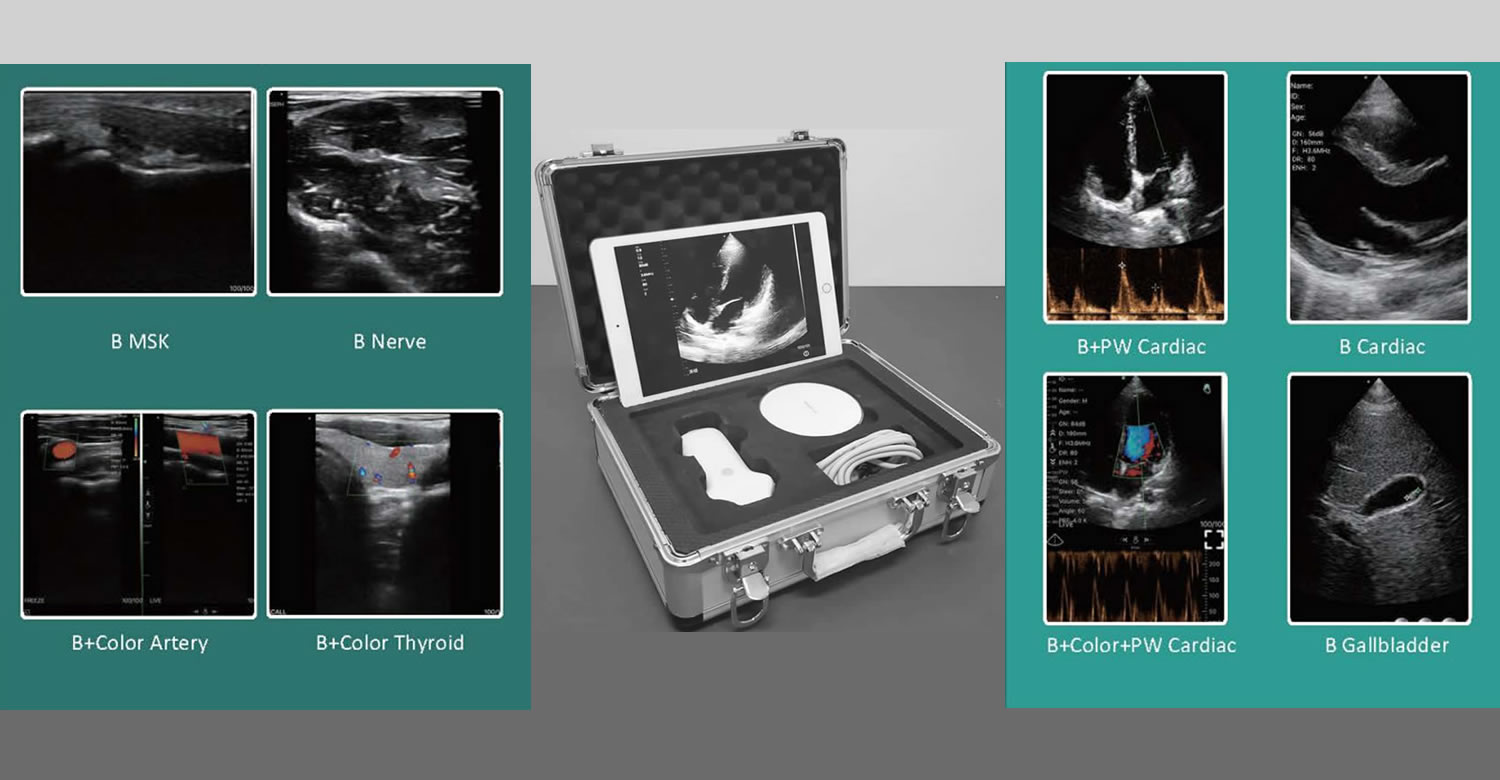

Probe, Planchet, Software, Wireless charger, Cable, Aluminum Case |
Software controls |
GN (gain), D (depth), ENH (enhencement), DR (dynamic range), F (frequency), PRF, WF, Focus, Mode B, B/M, Color doppler, PW, Power doppler, Biopsy, Pade left / right, UP / Down, 8TGC |
Connection |
2,4G / 5G, WIFi, USB |
