The best position to study Pulmonary Veins flow by spectral Doppler (PW, CW) is the apical four-chamber view. The control volume is placed in the Pulmonary Vein to the depth of 10-20 mm.

Pulmonary Vein Flow examination. Sample Volume position. Apical 4 Chamber view



Normally, the flow is observed both in the systole and diastole phases. Consists of a Systolic, Diastolic, and Atrial Component.

The speed of the systolic phase is greater than the diastolic, they register on top of the baseline. With the contraction of the left atrium, a small reversion of blood is observed, which is registered below the baseline.



• S - Systolic phase.
• D - Diastolic phase.
• Ar - Atrial Component

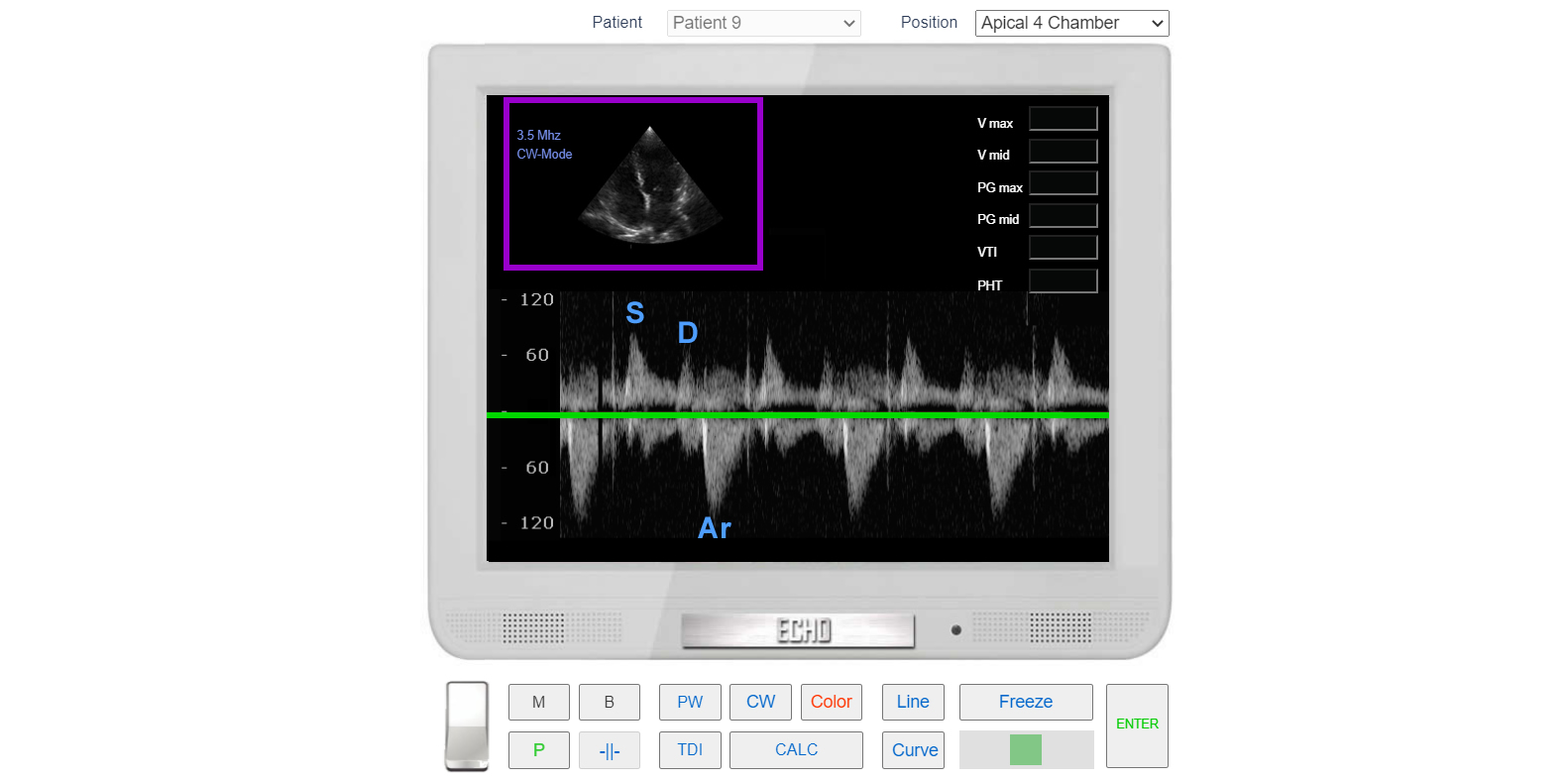

Pulmonary Vein flow. CW Doppler



How to Simulate Pulmonary Veins Flow (PW and CW mode)?

---
