The study is better to perform from a Parasternal Approach, short axis of the heart, at the level of the Pulmonary Artery. The Sample Volume is placed in the Pulmonary Artery (1 cm distal of the Pulmonary Artery Valve).



Pulmonary Artery Flow examination. Sample Volume position. Parasternal view, Short axis of the heart at the level of Pulmonary Artery



Flow occurs in the diastole phase and is directed away from the transducer, and located below the Baseline. The flow, in contrast to the aortic, has a small amplitude.

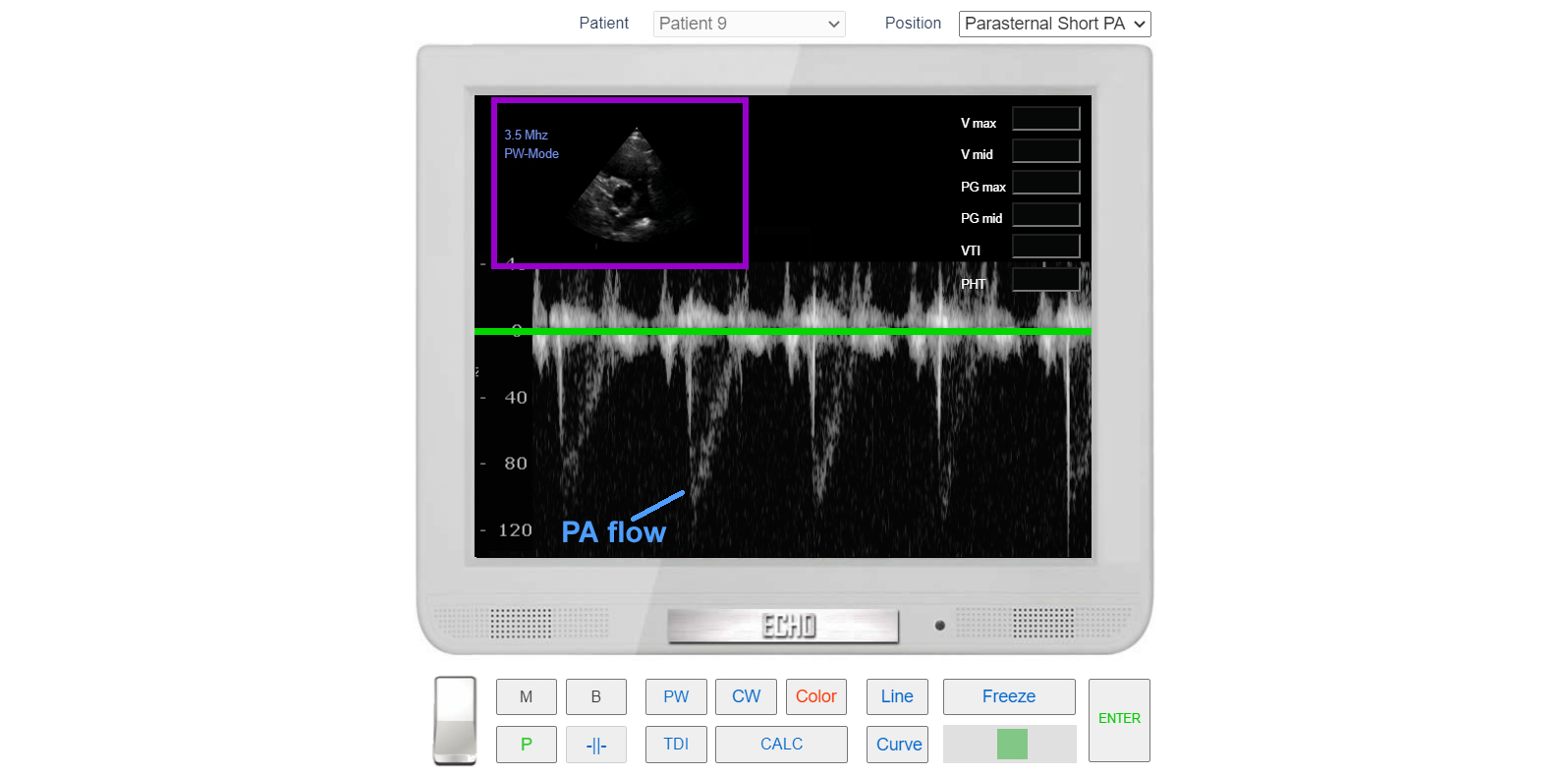

Pulmonary Artery flow. PW Doppler



How to Simulate Pulmonary Artery Flow (PW and CW mode)?
