Normally, the flow in the Outflow Tract of the Right Ventricle and the Pulmonary Artery is observed in the systole phase.

For studying the flow in RVOT and PA by Color Doppler, the Best positions are Left Parasternal View the short Axis of the heart at the level of the Aorta, and Left Parasternal View the short Axis of the heart at the level of pulmonary Artery.

The flow is directed away from the transducer and accordingly encoded in blue color.

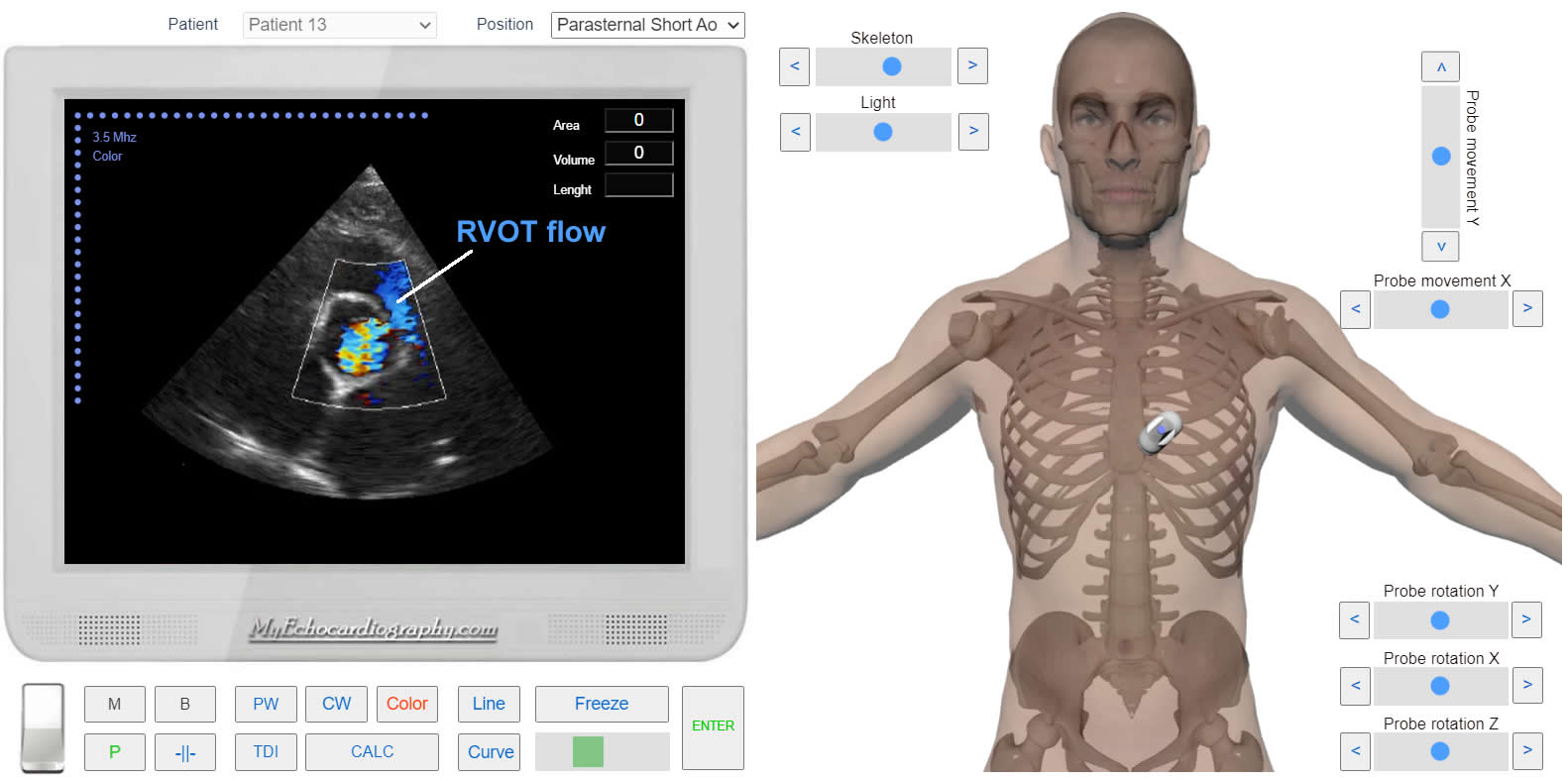

Left Parasternal View, the Short axis of the heart at the level of Aortic Valve. RVOT flow Color Doppler. Simulation By Echocardiography Online Simulator MyEchocardiography.com

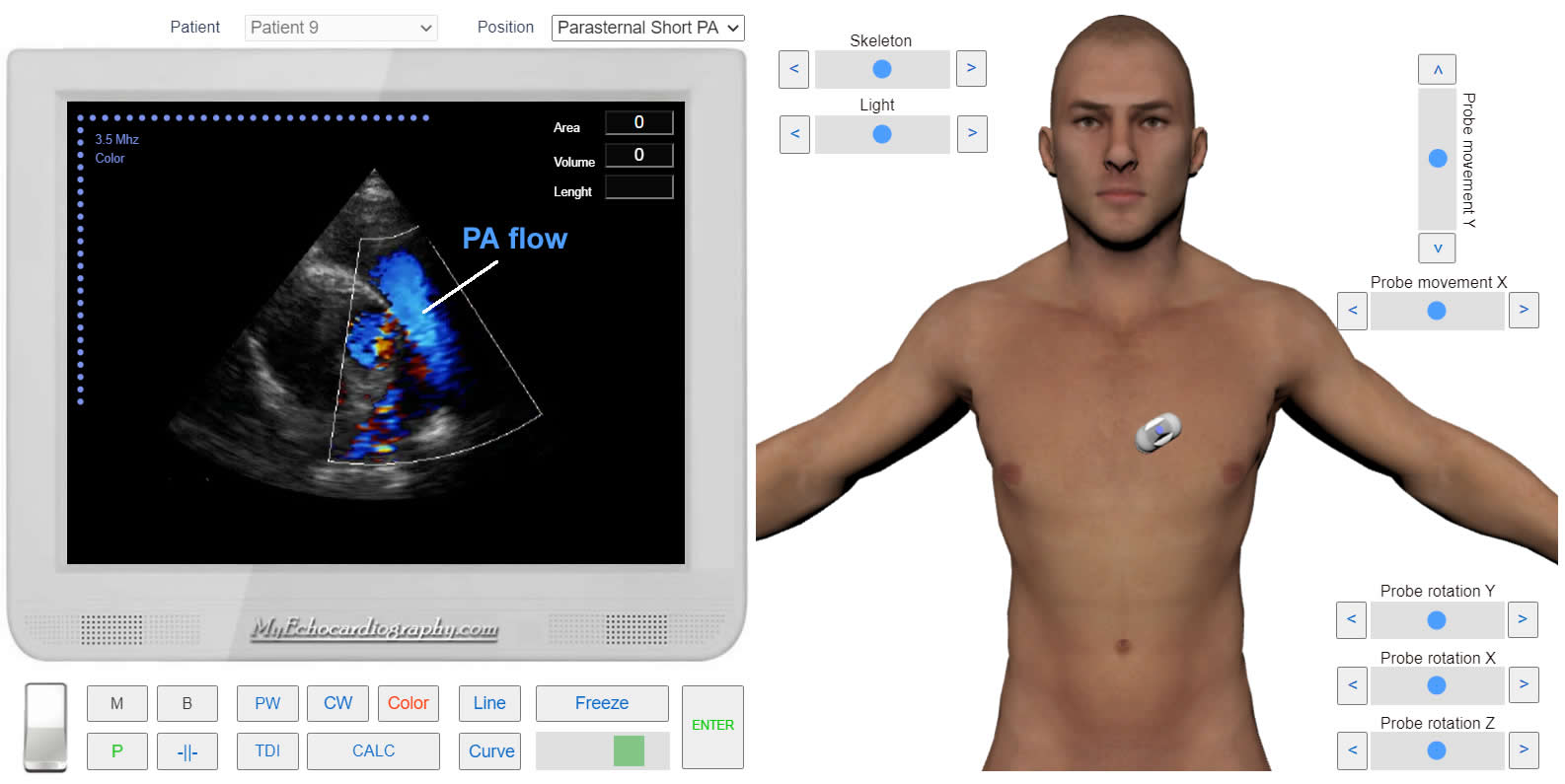

Left Parasternal View, the Short axis of the heart at the level of Pulmonary Artery. PA flow Color Doppler. Simulation By Echocardiography Online Simulator MyEchocardiography.com







How to Simulate RVOT and PA Flow Color Doppler?

---
